22″ High Output Osram LED Light Bar With DRL Function Combo Spot Flood Beam For Truck Offroad UTV ATV Marine Vessels 12V – 24V

 A new light bar designed for maximum visibility with it’s all 30° spot beam pattern on the top row for maximum beam distance and a combination 110° beam angle flood beam pattern for wider ground illumination and a daytime running light function (DRL). This newly designed light bar is powered by a 5 watt Osram LED Chip and a 3 watt Cree LED for the flood beam. This high-intensity LED light bar provides a superb visibility both on the ground and farther ahead.

• 22 inch OZ-USA dual function spot flood beam combo with daytime running light (DRL).
• Change to DRL function with a flip of a switch. Turn your switch to On-Off-On to switch from driving light to daytime running light.
• More light forward with our new design top row all spot lens to cover farther distance.
• All flood lens bottom row to illuminate the ground in front of the vehicle.



Specifications:

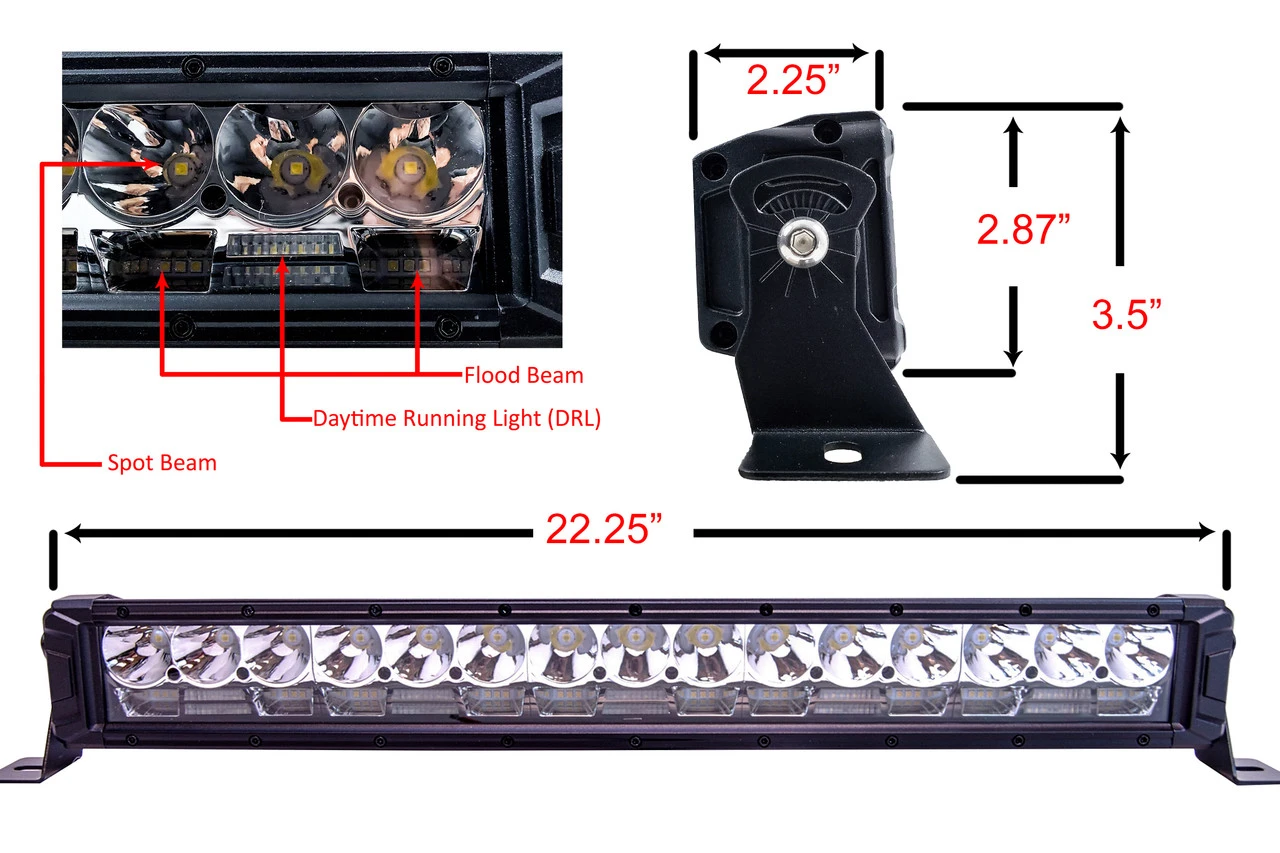

• Measurements: L: 22.25 in. W: 2.87 in. Depth: 2.25 in. ( L: 56.51 cm. W: 7.29 cm. D: 5.71 cm.)
• Weight: 5 lbs
• Input Voltage: 9-32V DC
• Power Consumption: 105w
• Amp Draw: 8.75 A @ 12 Volts
• Raw Lumens: 11550 LM
• Color Temperature: 8250K
• Beam Pattern: Spot + Flood
• LED Life span: 50,000+ hours

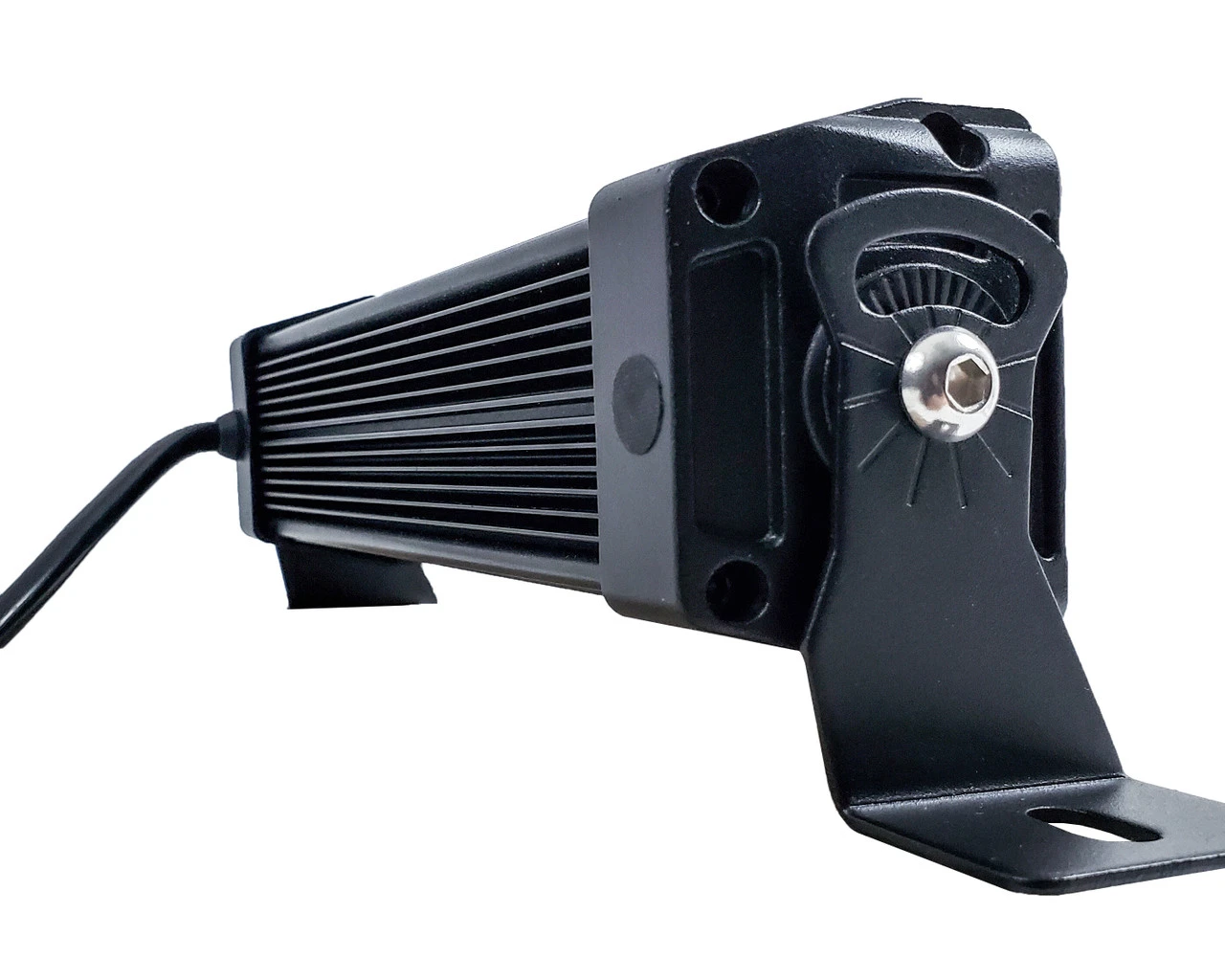

• Housing: Die-cast Aluminum

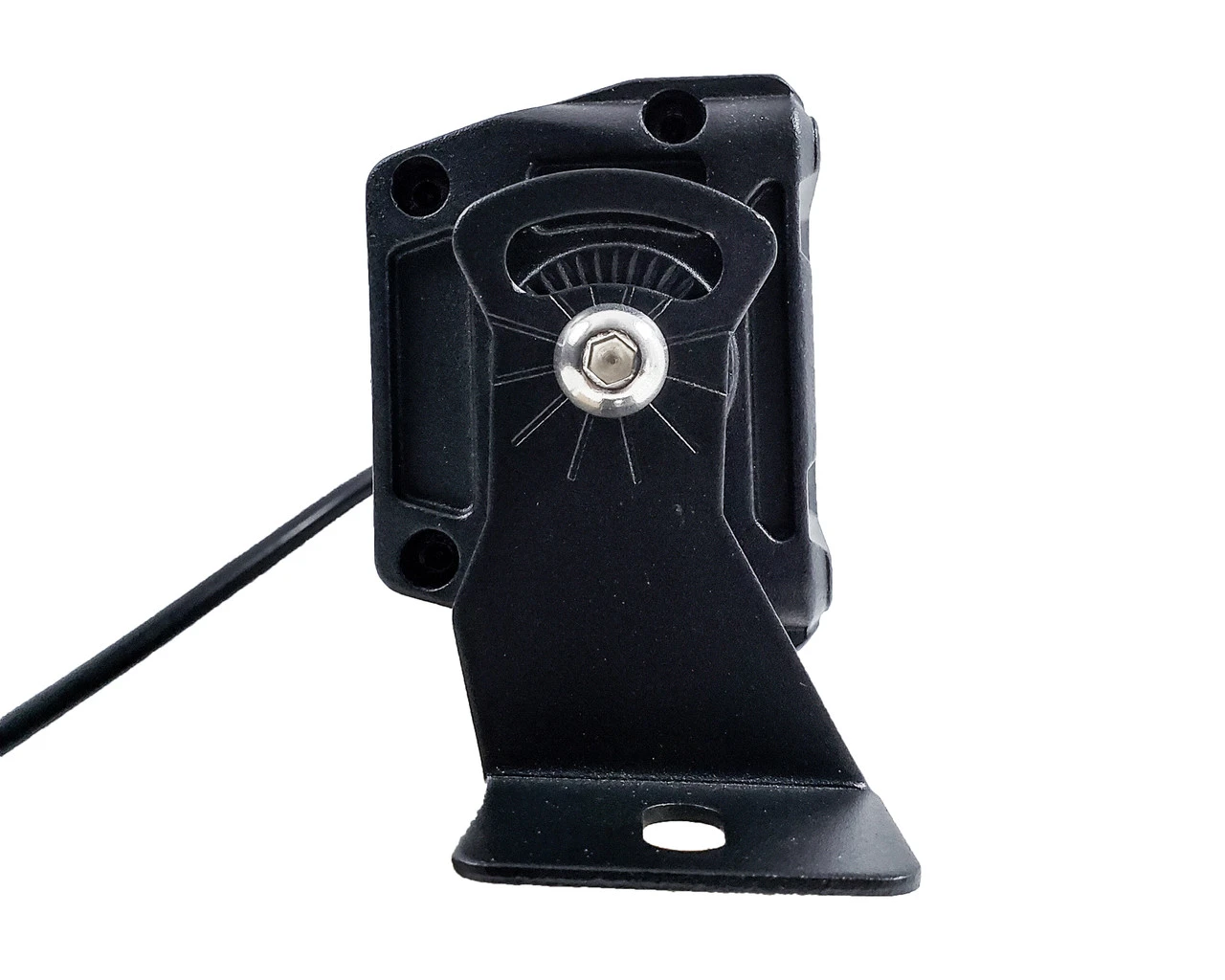

• Mounting Brackets: Aluminum Single Point Side Mount
• Electronics: Integrated-Epoxy Encapsulated
• Operating Temperature: -40˚F to +140˚F (-40˚C to +60˚C )
• IP Rating: IP68
• Protections: Reverse Polarity.



OZ-USA® Difference:



• OZ-USA® Provides the Best value for premium parts
• OZ-USA® Products are manufactured with high-end components and materials.
• OZ-USA® Builds industrial-strength products for a long term, continuous heavy use



Buy with confidence!



• Easy returns
• Solid warranty
• Fast shipping from San Diego.



Great for, off-road vehicles, racing applications, construction vehicles, farm vehicles, marine applications.

USA Shipping (California), USA Warranty: 1 year. Extremely bright, will turn night into day, not DOT approved, off-road use only.
