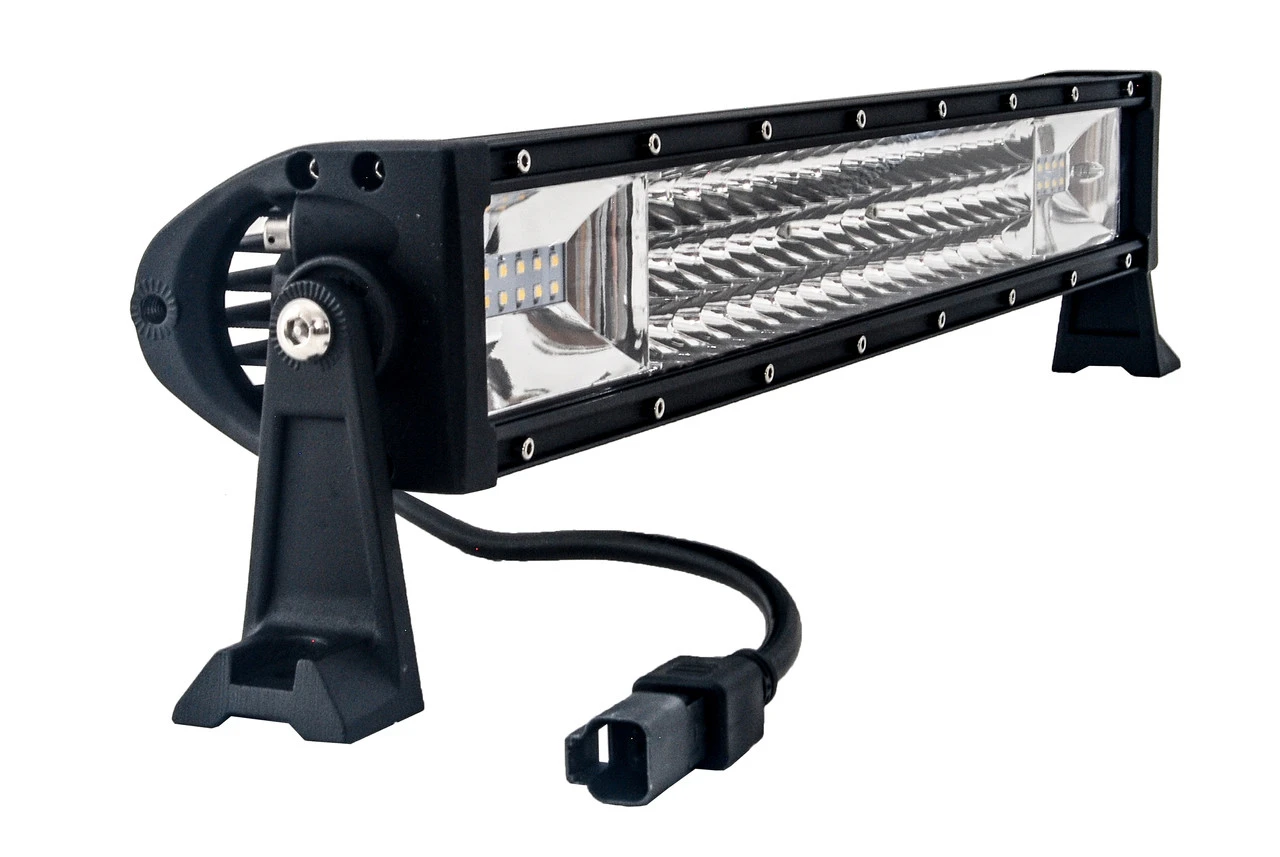

T-Series 22″ Triple Row LED Light Bar Combo Beam + Black Lens Cover Wire Harness Kit For Offroad Truck SUV UTV RV



• OZ-USA® 20″ T-Series LED Light bar, combo beam: Spot + wide angle flood (Patent pending.)
• Triple row spot reflectors with wide angle flood beam sides (120° horizontal & 90° vertical coverage.)
• High performance LED Chips. Military grade waterproof breather (will regulate pressure inside the bar while keeping moisture out)
• Dual Point Stainless steel mounting brackets and Single point hardened steel brackets. Includes a Security Hardware Kit & 4 pcs. Black Lens Cover.
• Plug and play wire harness kit. On/Off switch, 40A relay, 30A fuse, and DT plug connector.
• 5 Pieces, DOT approved impact-resistant lens cover. Easy snap on/off.
• Waterproof and weatherproof heavy duty aluminum housing, Impact resistant PC Lens. Designed for extreme conditions.

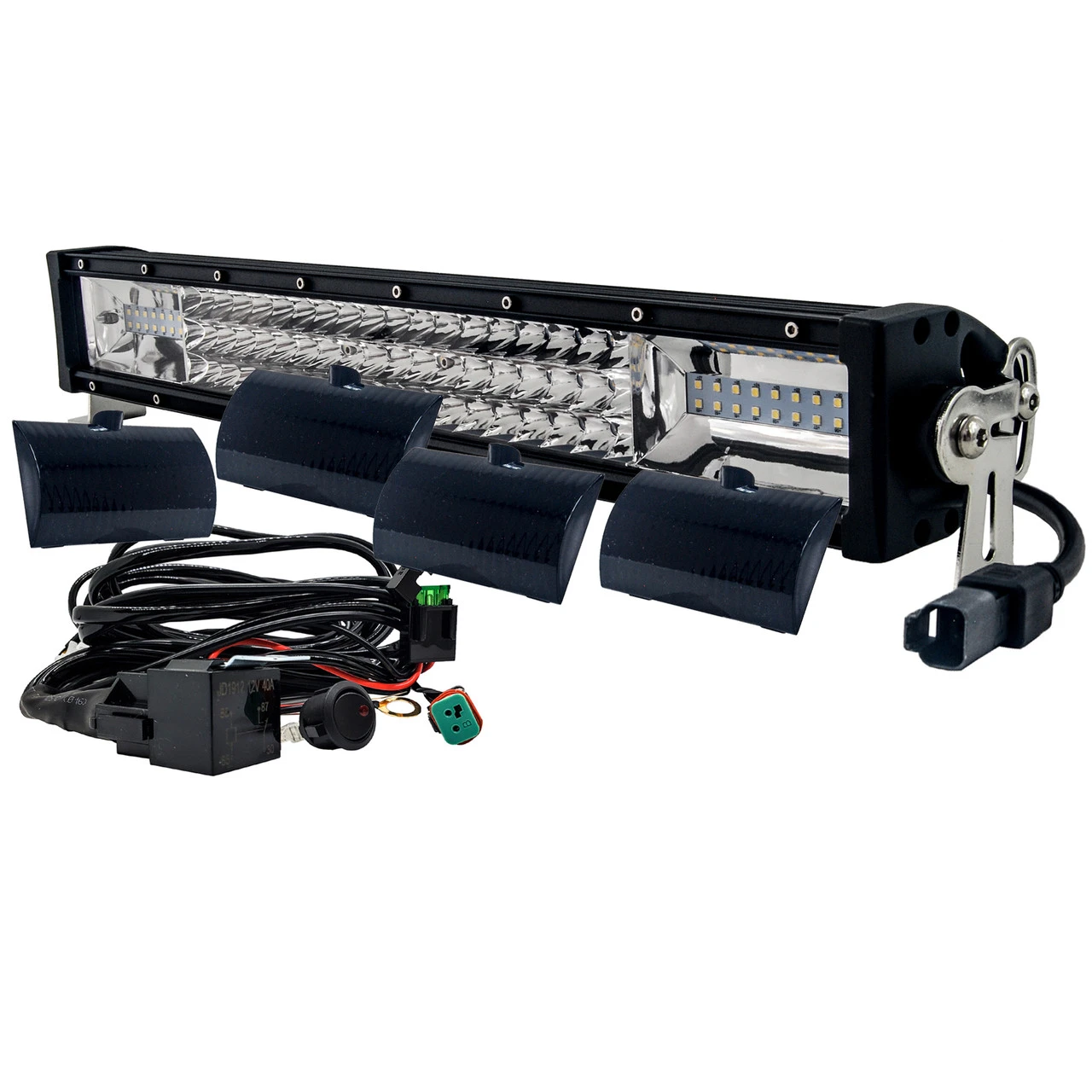

Package includes:

•      1 pc. 22″ Triple Row LED Light bar
•      4 pcs. 5″ Black Lens Cover
•      1 Set Security Hardware Kit
•      1 Wire Harness Kit (Switch, relay, fuse, DT connector)

Specifications:

• Measurements: L:22.00″, W: 3.25″, H: 3.0″ (L: 55.88 cm., W: 8.3 cm., H: 7.6 cm.)
• Weight: 7 lbs.
• Input Voltage: 9-32V DC
• Energy Consumption: 75w
• Raw Lumens: 13590 lm
• Color Temperature: 5000-6000K

• Beam Pattern: Spot 30° Beam + Wide Angle Flood Beam(180° Horizontal + 90° Vertical)
• LED Life span: 50,000+ hours,

• Housing: Die-cast Aluminum

• Lens: Impact resistant Polycarbonate

• Mounting Brackets: Dual Point Stainless Steel & Single Point Hardened Steel
• Electronics: Integrated-Epoxy Encapsulated

• Operating Temperature: -40˚F to +140˚F (-40˚C to +60˚C )

• IP Rating: IP67
• Protections: Reverse Polarity.




OZ-USA® Difference:



• OZ-USA® Provides the Best value for premium parts
• OZ-USA® Products are manufactured with high-end components and materials.
• OZ-USA® Builds industrial-strength products for a long term, continuous heavy use



Buy with confidence!



• Easy returns
• Solid warranty
• Fast shipping from San Diego.



USA Shipping (California), USA Warranty: 1 year.
