White Amber Dual Row 12-LED Surface Mount Warning Strobe Light Flasher Emergency Vehicle Tow Truck Trailer Van Construction Heavy Equipment 12v 24v

Our new side marker strobe lights feature a high intensity LED chip for maximum visibility and performance. Utilizing the latest LED technology for creating more eye-catching patterns for safety. The ultra-low profile design allows easy installation on almost any location on the vehicle.

• 1 unit Double Row OZ-USA® 4.5 inch Surface Mount Emergency Warning LED Light

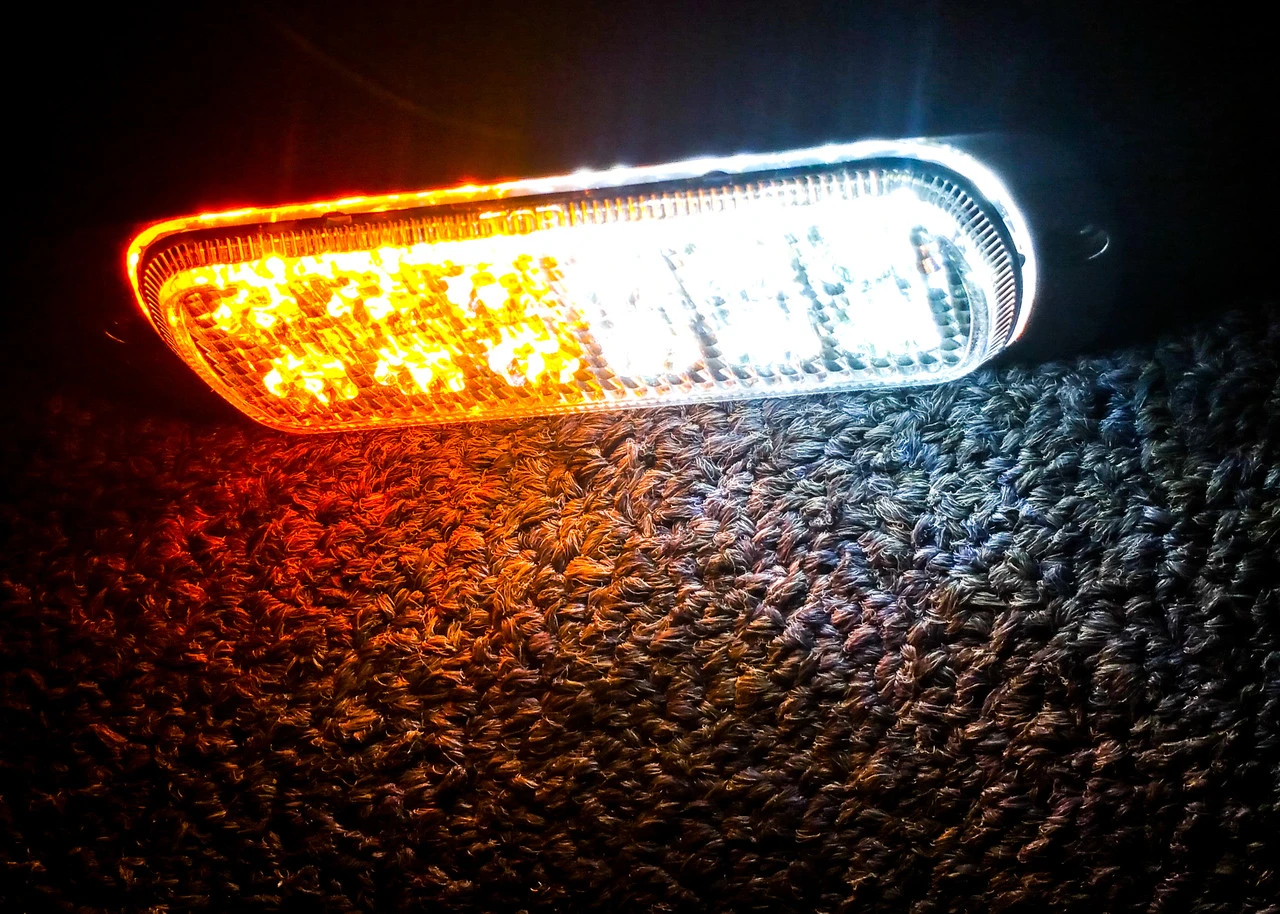

• High Intensity White + Amber 12-LED Strobe Lights. Extremely Bright.
• Ultra Slim Design. Self-contained light head. No flasher is required.
• Waterproof, weatherproof and shockproof built for extreme condition.
• 19-Flashing Mode. Last Pattern Memory Recall

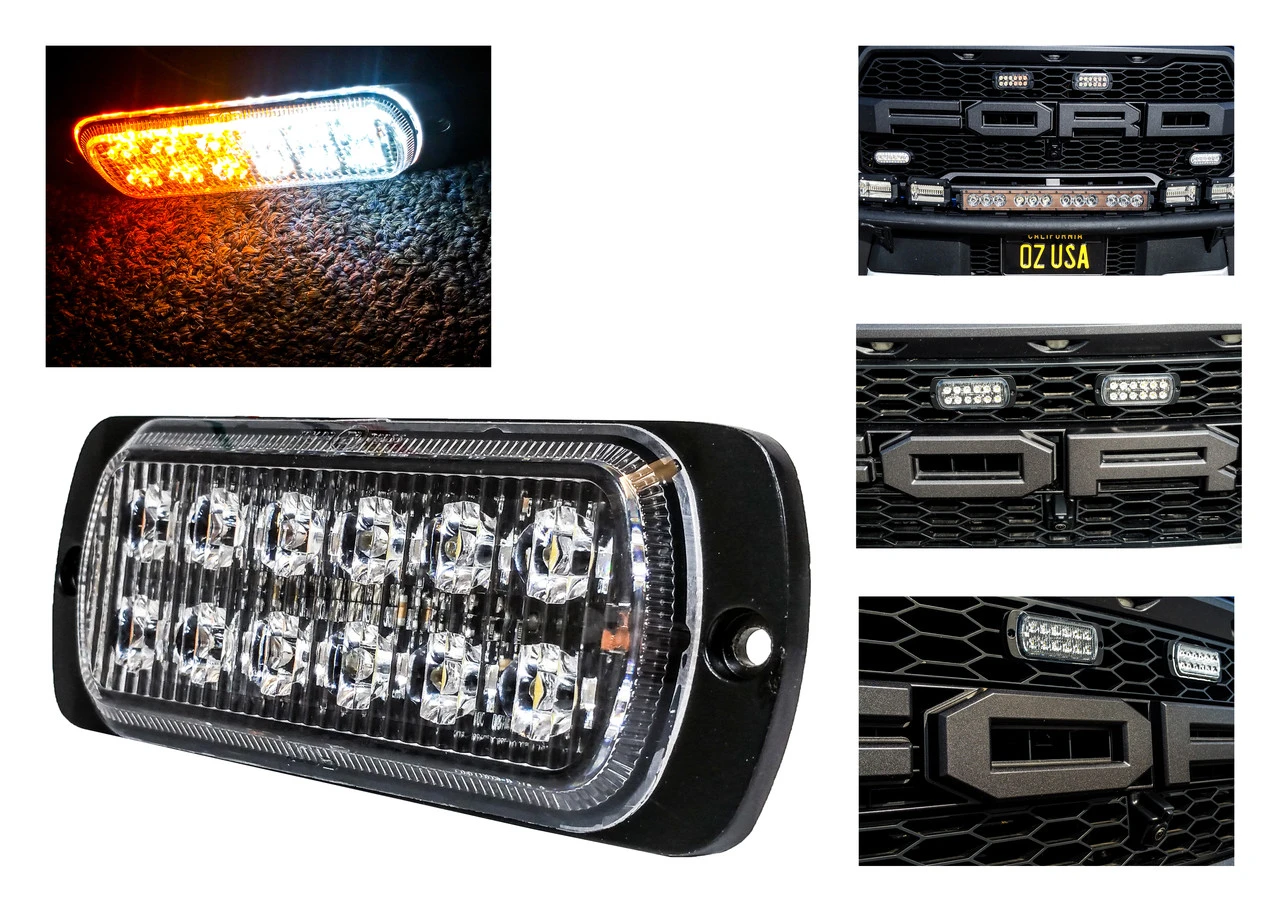

Application: Public Utility Vehicle, Tow Trucks, Emergency Vehicles, Snow Plower, Offroad Vehicles, Over-sized trailer, Construction vehicles, Heavy Equipment

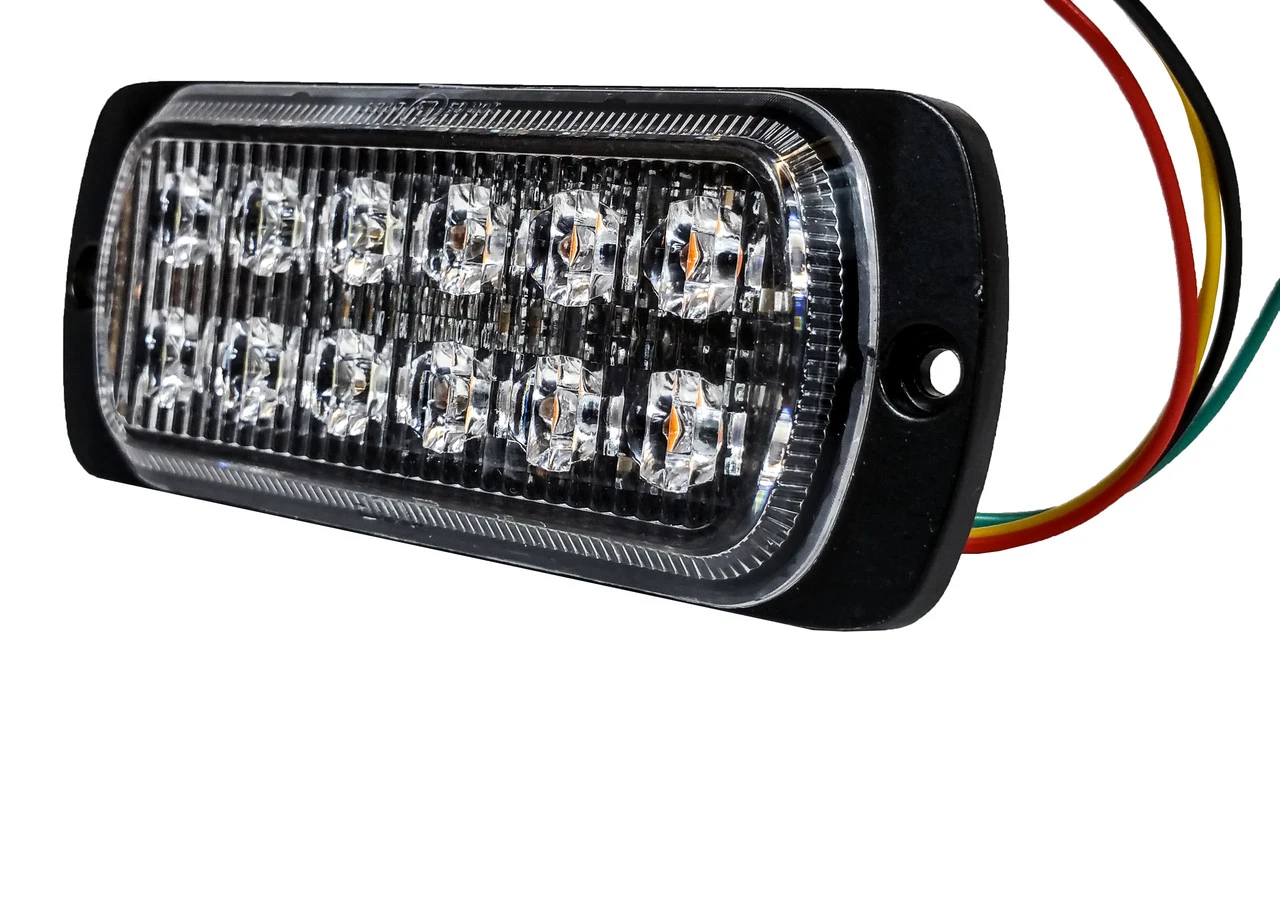

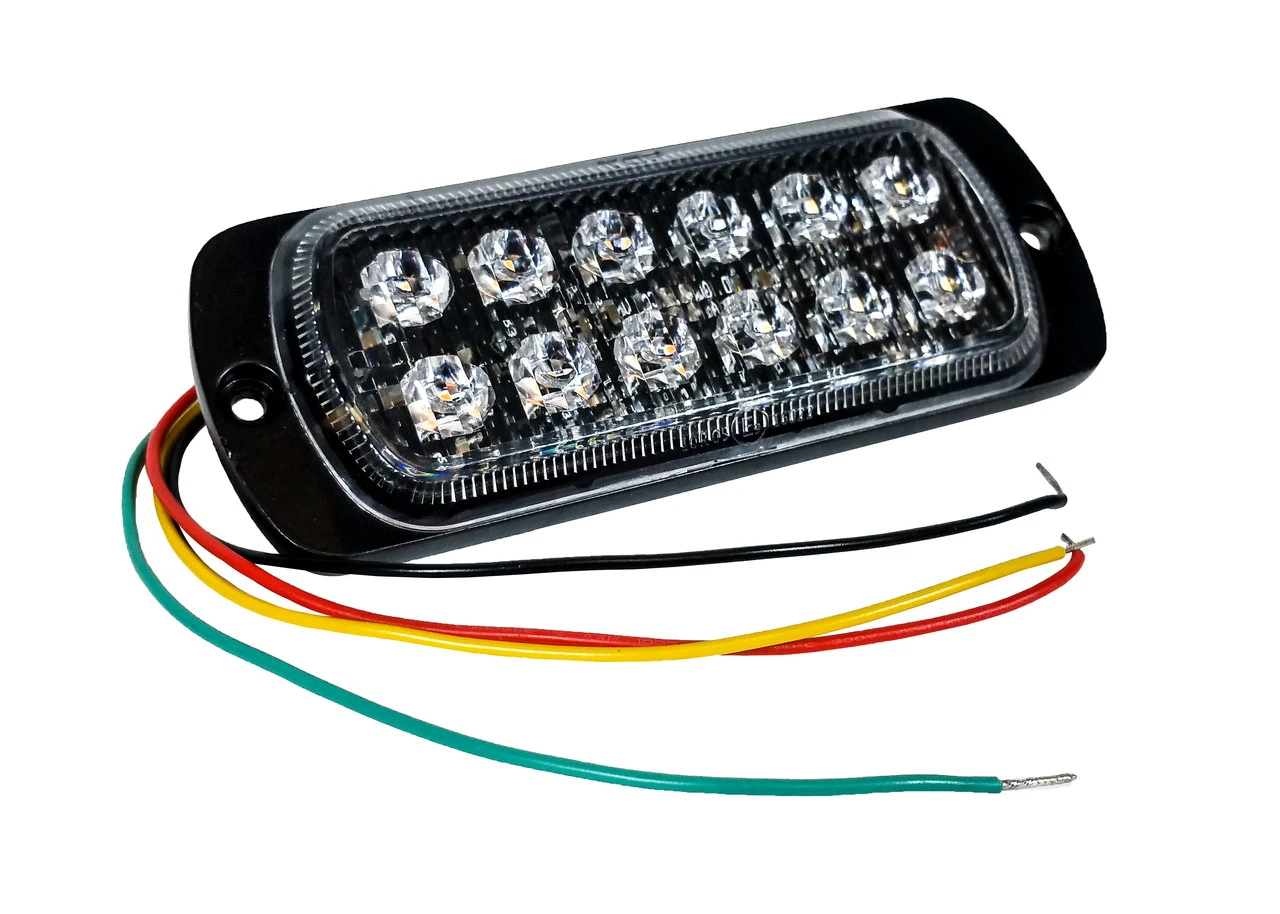

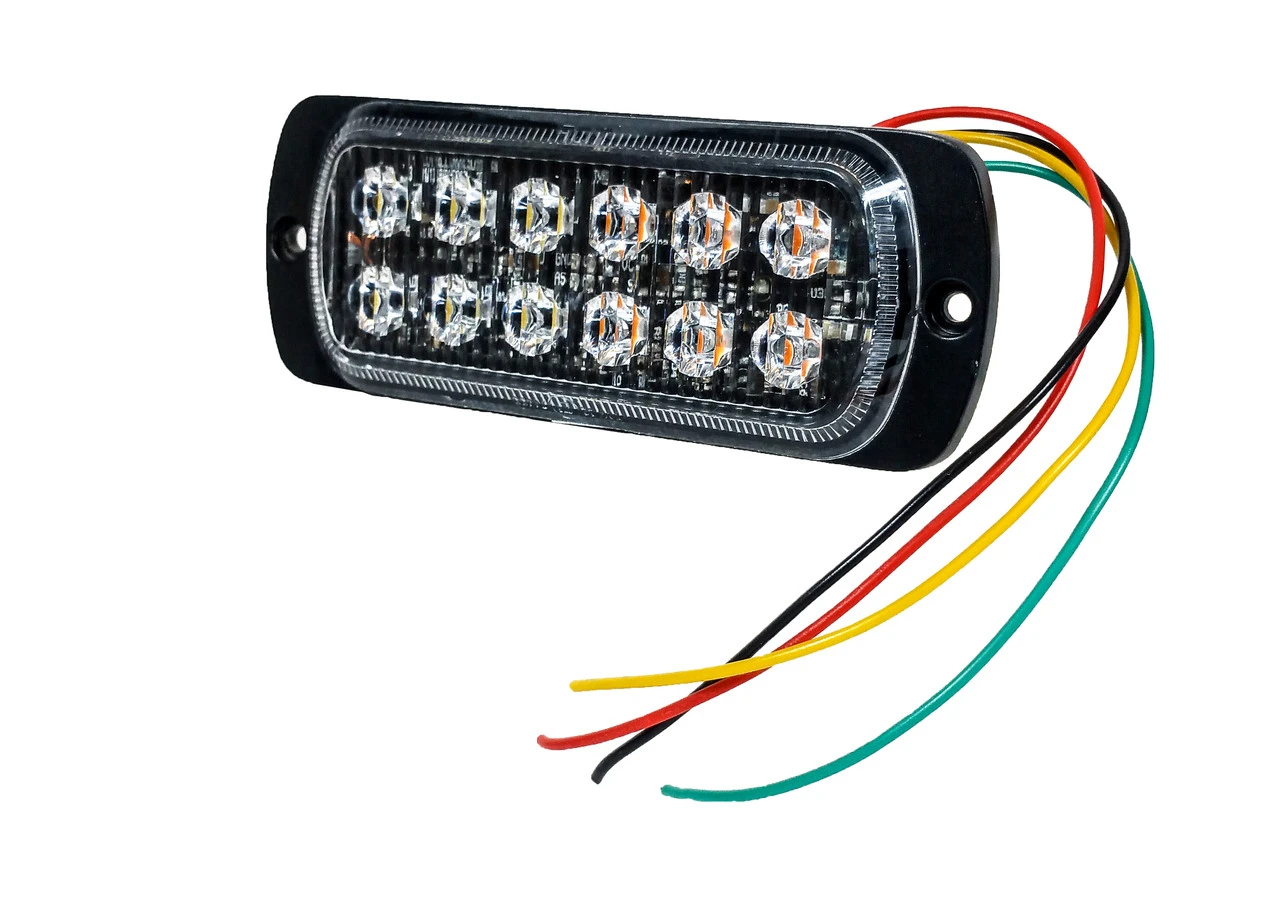

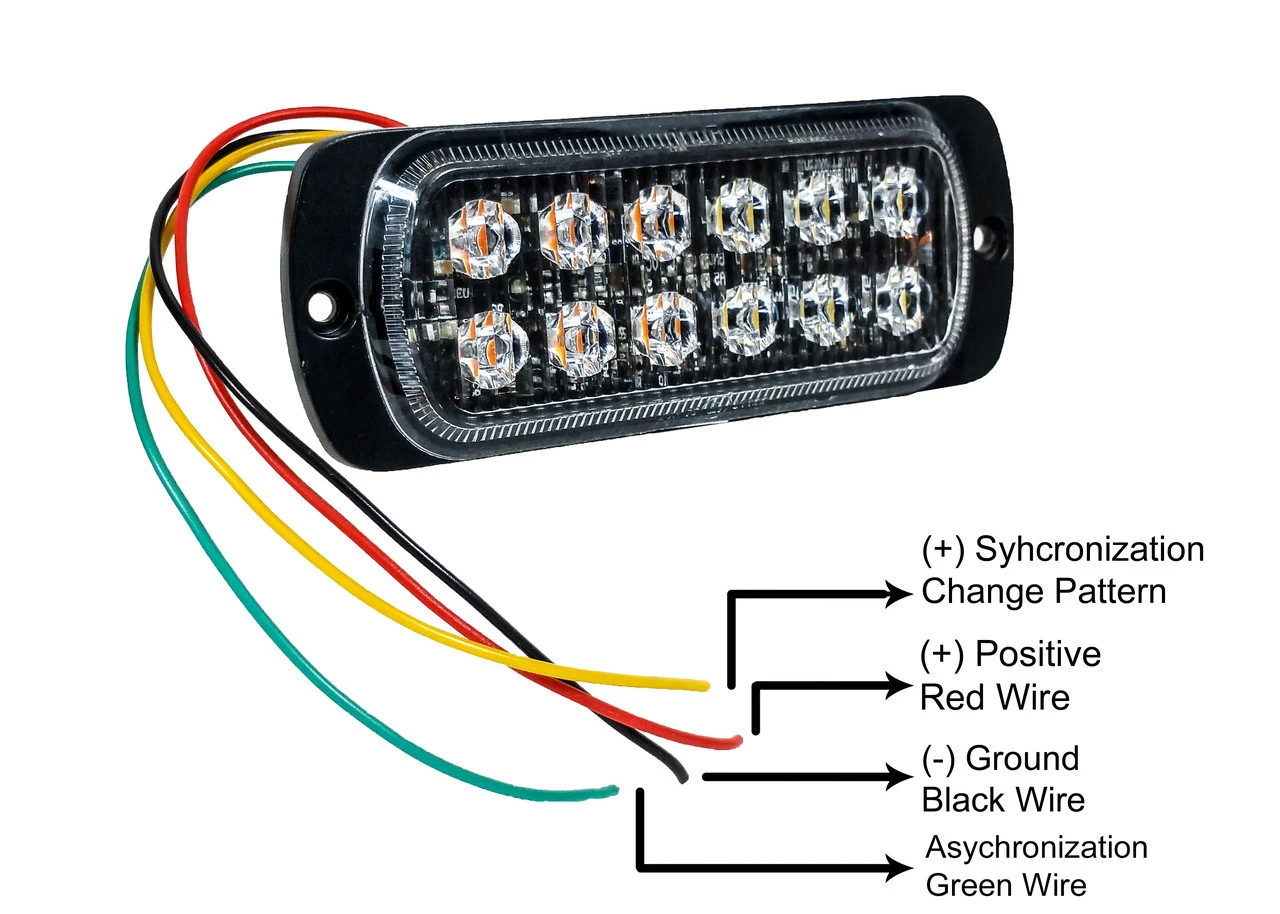

Wire Diagram:

• Red Wire – (+) Positive
• Black Wire – (-) Ground
• Yellow wire – For synchronization and change flash pattern (+)
• Green Wire – For  asynchronization. (+)

Note for sychronizing 2 or more lights:

• Connect all wires, red(+), black(-) and 2 yellow wires must be connected together.
• After connecting all wires, (turn the power on) touch and hold yellow wires to positive(+) for 3-4 seconds and all lights will go out for one(1) second and then turn back on.
• They are now synchronized and every time you touch the yellow wire to positive(+), it will change the flashing pattern on all lights.

Wiring 2 or more lights to “wig-wag” asynchronization:

Follow instructions for synchronizing and then attach one green wire to power(+) and lights will wig-wag back and forth. You can still change flashing pattern in this mode by touching the yellow wire to positive(+).

 Specifications:

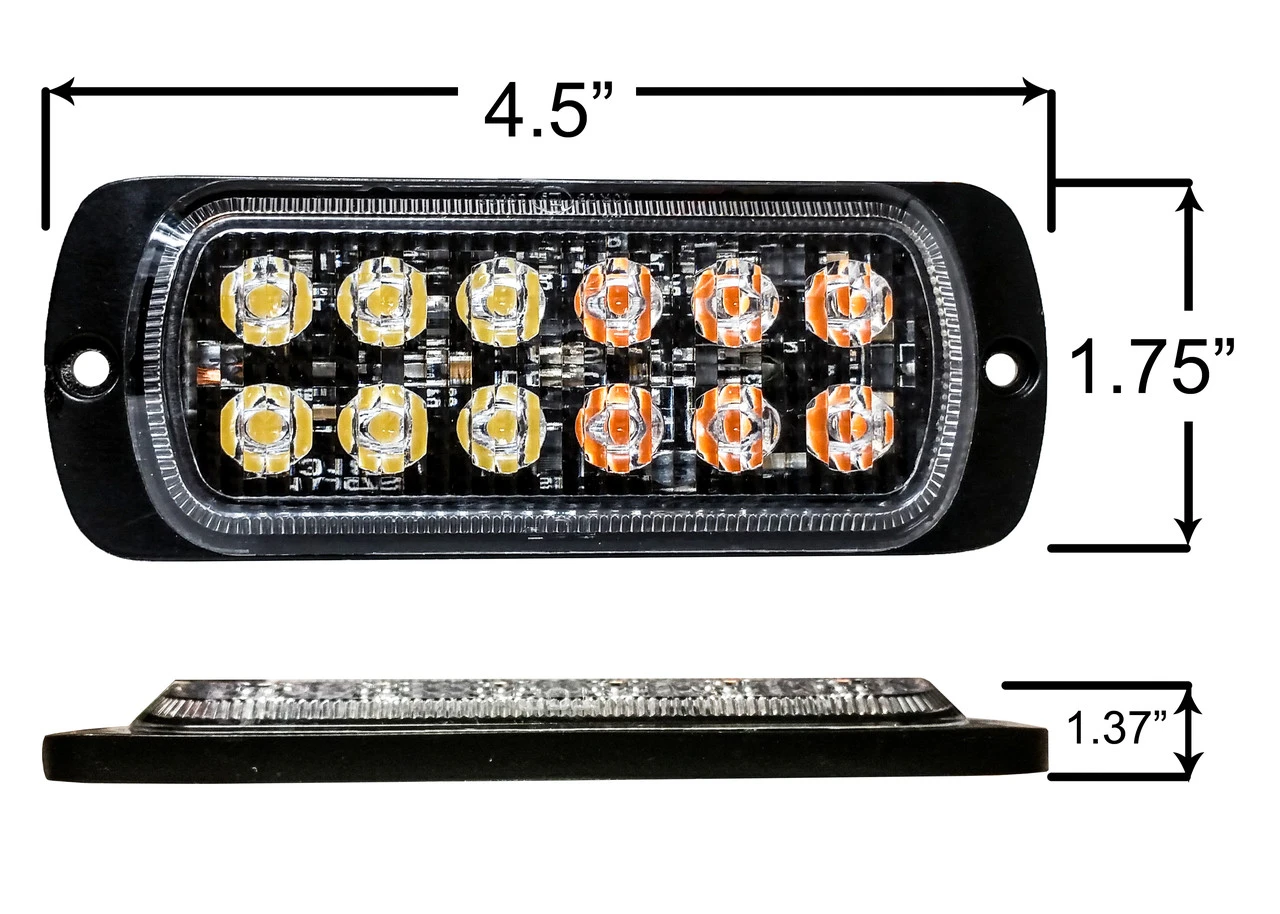

• Dimension: L: 4.5″ W: 1.75″ D: 0.375″
• Voltage: 10-30 VDC
• Base Material: Aluminum

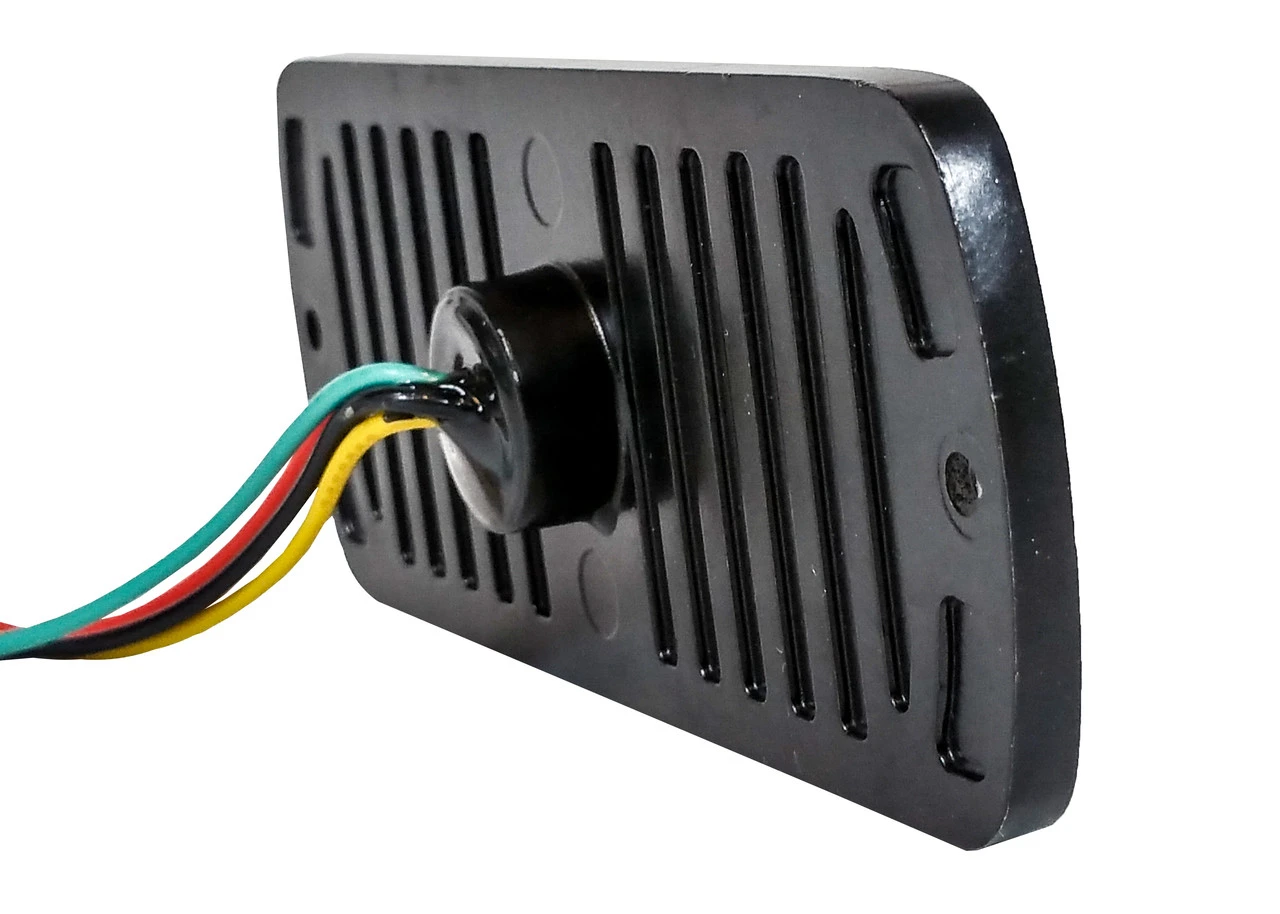

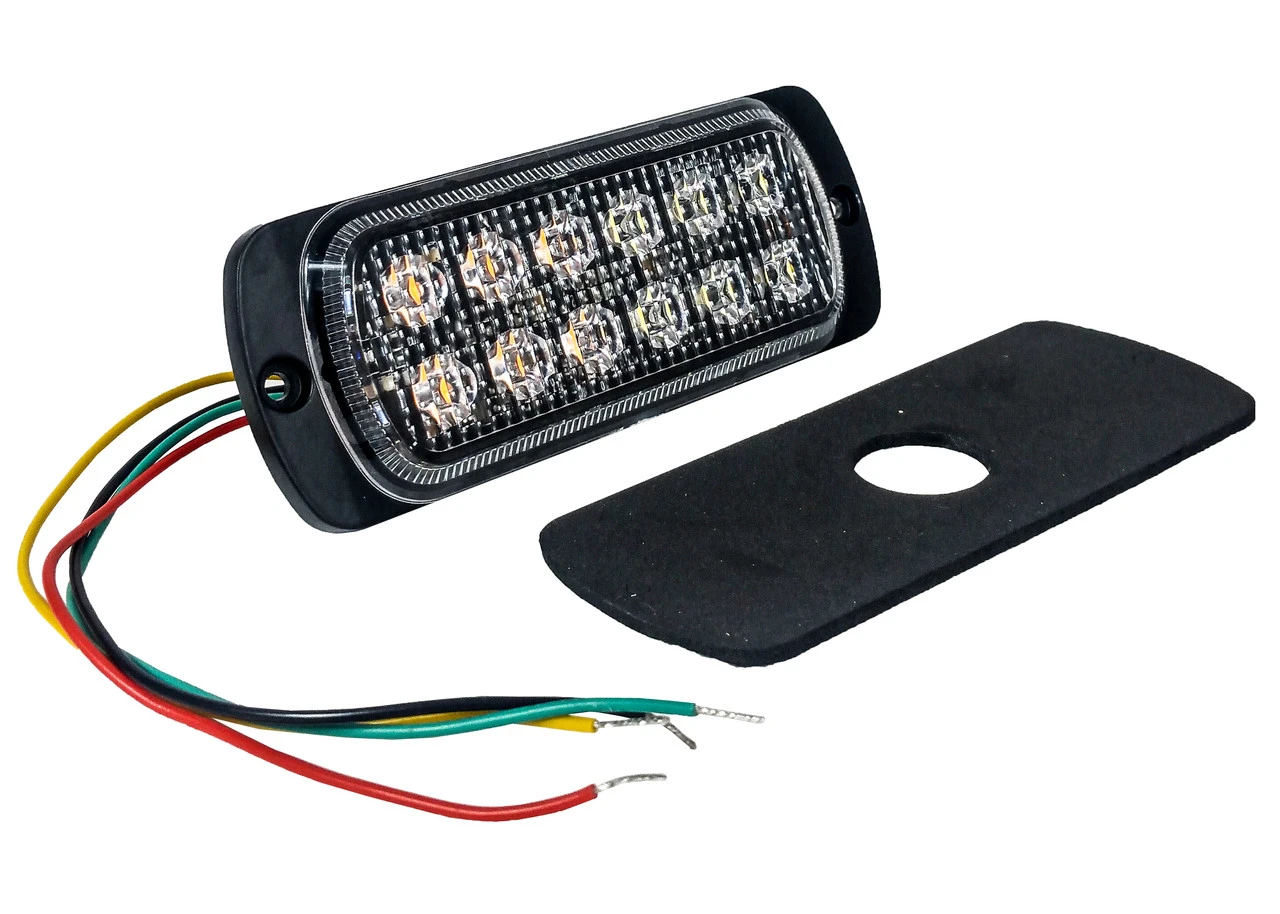

• Mount: Surface mount
• Lens: Polycarbonate
• Current Draw: 0.25A @ 12V / 0.12A @ 24V
• Max Power: 6W
• Waterproof Rate: IP67

OZ-USA® Difference:

• OZ-USA® Provides the Best value for premium parts
• OZ-USA® Products are manufactured with high-end components and materials.
• OZ-USA® Builds industrial-strength products for a long term, continuous heavy use

Buy with confidence!

• Easy returns
• Solid warranty
• Fast shipping from San Diego.

USA Shipping (California), USA Warranty: 1 year.
